Another DIY Parallelogram Binocular Mount
Submitted: Wednesday, 28th March 2007 by Dennis Simmons

Click to Enlarge
Parallelogram Binocular Mount

Introduction

At the Queensland Astrofest in 2003 I stood mesmerised by the sight of a fellow astronomer, gliding effortlessly around the cosmos on his commercial, motorised, binocular chair, replete with GoTo capability. The whole two-eyed, recline-in-comfort, “drive-me-there” observing experience looked simply awesome.

At the time, I had with me my Vixen giant binocular (30x125), supported by the very nice Vixen Alt-Az fork mount, all fitted on a home made wooden tripod. Using this set up I was able to view objects quite satisfactorily, even at the zenith (the binocular has 45° eyepieces), though scanning wider fields necessitated shuffling my observing chair around the tripod. This slow, jerky, crab-like, sideways waltz took the edge off an otherwise wonderful observing experience. Occasionally colliding with the tripod legs also proved a mild irritation! However, to offset this inconvenience, I was smug in the knowledge that motor-chair dude had only 25x100’s mounted on his whiz-bang GoTo chair! Some time later I looked at these motorised chairs on the internet, but their price range of $5000+ put them light years beyond my reach.

Much later, I began thinking of a parallelogram design that incorporated the Vixen fork arms, to be used in a recliner. The main challenge would be the weight – the binocular comes in at 11kgs and the combined weight with forks and finder amounts to 16kgs. That is, 16kgs of glass and metal floating above your face!


Click to Enlarge
Figure 1 - Mount Parts

I started the design at the fork mount support end, working backwards to select components and materials that would support this substantial cantilevered weight. Fortuitously, some wood off-cuts from a neighbour’s home renovation provided me with some very nice timber that looked stout enough to do the job, so the project finally got underway. Always at the back of my mind, I had Plan B, which was to make the mount dual purpose, easily configurable for our much lighter 12x50 binocular, just in case the Vixen giants proved to be too unmanageable.

Plan B also involved incorporating a 5th degree of motion capability at the binocular end, allowing me to sweep a slice of skies between 60° and 90° wide, simply by rotating my head up to 30° or 45° either side of centre. This was crucial as it would be wholly impractical to have to constantly reposition the reclining lounger, in order to sweep adjacent slices of the celestial sphere.

Design

The mount is made up of a number of main units; the Tripod, Parallelogram & Fork Arms Assembly and the Binocular Alt-Az Unit. This article will concentrate mainly on the Parallelogram & Fork Arms Assembly, which is made up from various sub-assemblies as described below:

  • Azimuth Base & Main Fork Assembly
  • Parallelogram Assembly
  • Binocular Support Assembly (for Vixen 30x125’s)
  • Binocular Swivel Arm & Alt-Az Unit (smaller binoculars’ only)
Azimuth Base & Main Fork Assembly

This assembly fits onto the Tripod Azimuth Bearing and is made up of the Azimuth Base and Main Fork Arms. Refer to Figure 2 for details.


Click to Enlarge

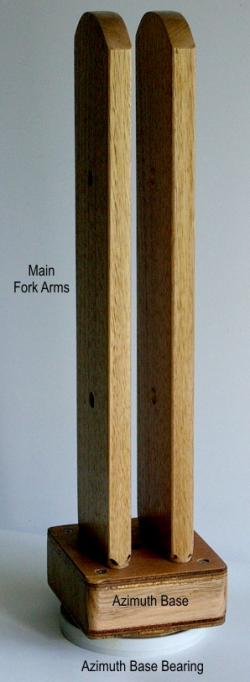

Figure 2 - Azimuth Base & Fork Assembly

Parallelogram Assembly

This comprises the (longer) Upper Beam and the (shorter) Lower Beam along with the counterweight balance arm. These form the parallelogram assembly with the Main Fork Arms at the tripod end and the Binocular Support Assembly at the viewer (binocular) end. Refer to Figure 3 for details.


Click to Enlarge
Figure 3 Parallelogram Assembly
Binocular Support Assembly

This assembly fits on the binocular end of the parallelogram assembly and consists of the Vertical & Horizontal Support Arms, (see Figure 4) and a Mounting Block (see Figure 5) for direct attachment of the Vixen 30x125’s Fork Arms, or the (smaller) Binocular Alt-Az Unit.


Click to Enlarge
Figure 4 Binocular Support Arms

Click to Enlarge
Figure 5 Mounting Block & Swivel Arm

Binocular Support Swivel Arm

This piece of wood plus the cylindrical block of wood that fits in between the Horizontal Support Arms provides the all important 5th degree of motion allowing the viewer to sweep up to ¼ of the skies without the need to move the lounger or tripod.

Binocular Alt-Az Unit

This small assembly is a simple, home made Alt-Az mount fabricated from aluminium and wood, fitted to the Swivel Arm (5th degree of motion) that pivots inside the Binocular Support Arms Assembly. It is only fitted and used for smaller binoculars, such as our 12x50’s. Refer to Figure 6 for details.


Click to Enlarge
Figure 6 Binocular Alt-Az Unit

Tripod

The tripod was a home made unit from a previous project. It was modified slightly to fit an Azimuth Bearing surface made from a PVC plumbing end cap. We will not describe the tripod design and build process in this article, restricting ourselves to the parallelogram mount assembly. Refer to Figure 7 for tripod details.


Click to Enlarge

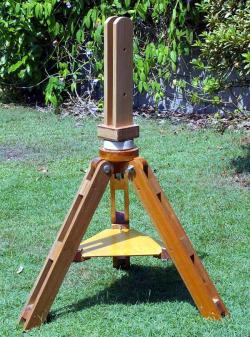

Figure 7 Home Made Tripod

Materials and Construction

I’ll provide the dimensions for the mount that I built, but these can be tailored to suit your particular requirements and set up. The embedded photos show the construction reasonably clearly, so I won’t add a step-by-step text description, although I will describe some important matters that will help with the construction.

These are:

  • Measure twice, cut once.
  • Align the parallelogram upper and lower beams together, clamp them firmly then drill the pair of holes for the ½ inch pivot bolts, to ensure that the final assembly aligns well and the motions are smooth and free of binding.
  • Align the Main Fork Arms and Binocular Vertical Support Arms together, clamp them firmly then drill the pair of holes for the ½ inch pivot bolts, to ensure that the final assembly aligns well and the motions are smooth and free of binding.
Azimuth Base & Main Fork Assembly
  • Main Fork Arms – two arms each made from 450 mm lengths of 93x19 mm hardwood.
  • Azimuth Base – made from x2 off 120 mm blocks of 63x32 mm hardwood glued together with 9 mm plywood top and bottom plates.
  • Azimuth Base Bearing – PVC plumbing end cap.

Click to Enlarge
Figure 8 - Azimuth Base

Click to Enlarge
Figure 9 - Azimuth Base & Fork Assembly

The 2 off 120 mm blocks of 63x32 mm hardwood were glued and clamped together and when the glue had set, the two top and bottom plates from 126x120x9 mm plywood were glued and screwed in place to strengthen the blocks. Two 19mm wide slots were routed out to accept the shaped bottom ends of the Main Fork Arms, which were glued in place. Long wood screws (3 inch) were then inserted from the under side of the base assembly, their action pulling the ends of the main forks into the routed out slots. These forks are going to have to support a lot of weight so this assembly has to be strong. Take great care in ensuring that the spacing between these main forks will accommodate the parallelogram beams, plus a few coats of varnish.

Parallelogram Assembly
  • Upper Beam – made from a 750 mm length of 63x32 mm hardwood.
  • Lower Beam – made from a 450 mm length of 63x32 mm hardwood.
  • The Counterweight bar is a 20mm dia x 400mm long galvanised bolt, with the bolt head cut off. This was purchased at Bunnings for $5.00, during a hardware sale. The 20mm dia shaft nicely fits my Vixen counterweights and the threaded end allows a safety washer and bolt to be fitted, to prevent the weights sliding off if they accidentally become loose. Refer to Figure 16 for details.
Binocular Support Assembly

This assembly is illustrated in Figure 10 and consists of the following components.

  • Binocular Vertical Support Arms - made from 310 mm lengths of 93x19 mm hardwood.
  • Binocular Horizontal Support Arms - made from 300 mm lengths of 93x19 mm hardwood.
  • Mounting Block – made from a 70 mm length of 63x32 mm hardwood. Refer to Figures 5 & 12 for location and details.
  • Binocular Swivel Arm (for small binoculars only) - made from a 300 mm length of 93x19 mm hardwood.


Click to Enlarge
Figure 10 - Binocular Support Arms
Binocular Alt-Az Unit

This was conceived as Plan B for our smaller 12x50 binocular, which do not have a ¼ inch tripod attachment socket. Refer to Figures 6 & 12 for details of construction. The upper and lower (shaped) black foam inserts hold the 12x50’s snugly. The centre post is a length of 6mm threaded rod that has been covered in black tape to avoid the metal threads from marking the binocular. A wing nut bearing down on an strip of aluminium bar (20mm wide x 3mm thick) allows the top foam unit to be pressed firmly down to hold the binocular in place once the correct Inter-Pupilary distance has been set.

Bearings

The Azimuth Base Bearing, Tripod Bearing and the Binocular Head Swivel Arm Bearings were made from PVC plumbing caps in various sizes, fitted onto wooden blocks for stiffness. These provide a reasonably smooth motion, although very small adjustments can be a little sticky at times.


Click to Enlarge
Figure 11 Tripod Azimuth Bearing

Click to Enlarge
Figure 12 Swivel Arm Bearing
Bearing Axes

The main Azimuth Base Bearing Bolt is a ½ x 9 inch coach head bolt that passes through the Azimuth Base, Azimuth Bearing and Tripod Head as shown in Figure 13. Tension is controlled by a wing nut.

The Parallelogram Beam Assembly is assembled using four off, ½ x 4 inch coach head bolts retained with washers and wing nuts.

The Swivel Arm pivots around the axis of a 10mm x 130mm bolt with a wing nut allowing for fine adjustment of the tension. Refer to Figures 5 & 12 for details.


Click to Enlarge
Figure 13 Azimuth Bolt

Click to Enlarge
Figure 14 Parallelogram Fasteners

General Notes

Degrees of Movement

This particular design has 5 degrees of movement. The first 4 are as follows:

1 – Azimuth movement at the main bearing where the mount joins the tripod.
2 – Altitude movement; the basic Up-Down movement of the parallelogram arms.
3 – Azimuth movement of binocular Alt-Az Unit (Figure 6).
4 – Altitude movement of binocular Alt-Az Unit (Figure 6).

I added an “extra” 5th degree of movement to provide for sweeping extended segments of the skies without having to either move the lounger, or contort my neck.

This extra, or “5th degree” of movement was provided by the swivel arm, which pivots on the binocular support arm. This allows the binoculars to be swivelled L-R across the front of the observers face, making it feasible to lie prone in a lounger, or remain seated on a chair, yet able to sweep approx ¼ of the heavens without having to move the mount, lounger or chair, but still feel relaxed and comfortable. All you need do is pivot your head around the neck – a natural movement, whilst pushing away, or pulling in, the Parallelogram arm. See Figures 15 & 26 for an illustration of this.


Click to Enlarge
Figure 15 5th Degree of Movement
Range of Movement

The vertical range of movement of the parallelogram assembly is around 76 cms.

Counterweights required

For the Vixen 30x125’s – 20kgs.
For the 12x50’s – 5kgs.

Dual Configuration

By adding the Swivel Arm and Alt-Az Unit, the mount can be converted from supporting the Vixen 30x125 binocular, to carrying our 12x50s with the addition of the 5th degree of movement. This is a no-tool change over.

Additional Construction Photos

Here are some additional photos that show general construction details and alternate views of some of the assemblies and components.


Click to Enlarge
Figure 16 Counterweight Arm

Click to Enlarge

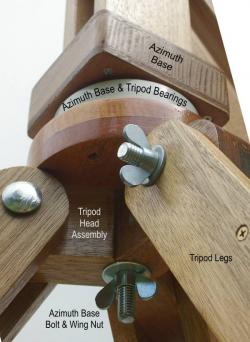

Figure 17 Main Azimuth Bearing

Click to Enlarge
Figure 18 12x50 Configuration

Click to Enlarge
Figure 19 Main Fork Arms

Click to Enlarge
Figure 20 Tripod & Parallelogram Assembly

Click to Enlarge
Figure 21 Tripod Azimuth Bearing

Click to Enlarge
Figure 22 Main Fork Arms Azimuth Bearing


System Testing and Safety of Use Issues

The design was not based on any quantitative engineering or mathematical calculations, relying simply on a gut feeling that the timber and fastenings employed would be more than adequate for the sheer weight of the Vixen giant binoculars. However, as the project progressed, I became keenly aware of the quite significant weights, moments and forces involved, so I decided to conduct a series of weight & balance tests before I put the unit into use. Here are the results:

Fitted with a 12x50 binocular

No operational or safety issues were discovered in all orientations and possible configurations of the system.

Fitted with Vixen 30x125 binocular

Some operational and safety issues were noted with various configurations of the mount as follows:

  1. Vixen giant binocular AND 20kgs counterweight fitted.
    • The system was evenly balanced over the full range of movements and rotations tested. No issues found.
  2. Vixen giant binocular fitted with NO counterweights.
    • With the Vixen giant binocular at the bottom of its travel (counterweight arm up) and the parallelogram beams rotated to an azimuth position centred between any two tripod legs, the tripod would easily tip with a slight push.
    • With the Vixen binocular at the bottom of its travel (counterweight arm up) and the parallelogram beams rotated to an azimuth position over any tripod leg, the tripod would not tip.
    • Note that operating the unit with the binocular fitted and an empty counterweight shaft is a very unlikely mode of operation.
  3. NO Vixen giant binocular but with 20kgs counterweight fitted.
    • With the counterweights at the bottom of their travel (counterweight arm down), the tripod would not tip irrespective of the azimuth position of the parallelogram beam.

It was interesting to note that when the assembly was fully loaded, with the parallelogram beams horizontal, by firmly tightening the 4 wing nuts, the parallelogram beam would remain horizontal when the Vixen giant binocular was removed from the mount, even with 20kgs of counterweight fitted.

Vibrations induced by moving the binocular took approximately 5 to 6 seconds to dampen down to zero.

Operational Restrictions

With the Vixen giant binocular fitted, based on the above testing, I decided that the unit was okay to use by myself as I am aware of the operational and safety limitations, and also by my wife under supervision. It is probably not suited for use at astro camps, even by experienced astronomers and certainly not suitable for public viewing.

General safety issues
  • A protruding, horizontal counterweight arm is likely to be a hazard at astro camps. At the Qld Astrofest last year, I noted that one inventive and safety conscious operator of a commercial parallelogram unit had impaled a 6 inch diameter polystyrene ball on the tip of their counterweight arm.
  • The scissor effect of the parallelogram arms as they open and close can produce crushing forces, so keep fingers clear from these beams when operating the parallelogram.
Improvements

Arguably, the design is not really suited to these giant binoculars, but the existing unit could be improved by:

  • Fabricating the Main Fork Arms from thicker material than the 92x19 mm stock, to avoid torsional twisting.
  • Designing a 5th degree of motion for use on the recliner.
  • Fabrication or purchase of a motorised binocular chair!

In the Field

Here are some photographs of the unit in use, in various configurations.


Click to Enlarge
Figure 23 Giant Binocular and Recliner

Click to Enlarge
Figure 24 Giant Binocular and Adjustable Seat

Click to Enlarge

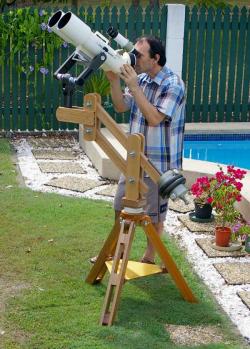

Figure 25 Giant Binocular & Standing

Click to Enlarge
Figure 26 12x50 Binocular and Recliner

Addendum

I have just discovered an excellent article describing “Binocular Mount Degrees of Movement” on the Cloudy Nights Binocular Forum.

Note that according to this article, the design described in this “how to” has only 4 degrees of movement, and what I have termed the “5th degree” is in fact only a “4th degree”.

Article by Dennis Simmons (Dennis). Discuss this article on the IceInSpace Forum.
