Moonlite CR2....

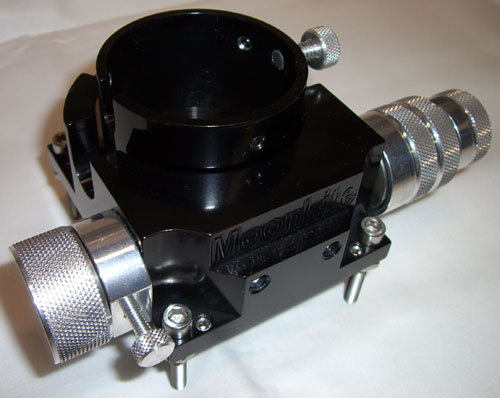

Ouchhh, the exchange rate doesn't look all that good but i finally found a focuser which bolts directly into my Celestron NGT10 scope rather than cutting it after many months of searching. Anyone had any bad/good experience with these?

cheers
Attached Thumbnails
Click for full-size image (587879-1.jpg)
64.2 KB25 views
Click for full-size image (587879-3.jpg)
61.3 KB33 views
Reply With Quote
  #2
Old 30-09-2008, 07:47 PM
h0ughy's Avatar
h0ughy (David)
Moderator

h0ughy is offline

Join Date: Apr 2005
Location: NEWCASTLE NSW Australia
Posts: 33,426
yep have one on the vixen and just bought the motorised version for the 127ed refractor. make sure you get the locking screw - its a optional extra
Reply With Quote
  #3
Old 30-09-2008, 09:12 PM
EzyStyles's Avatar
EzyStyles (Eric)
I HATE COMA!

EzyStyles is offline

Join Date: Jan 2006
Location: Melbourne, Victoria
Posts: 3,208
thanks houghy. Ibought one secondhand from AM as seen in the pics. i dont think that has the locking screw? i suspect its got a main setscrew which locks the focuser inplace anyway?
Reply With Quote
  #4
Old 30-09-2008, 09:53 PM
h0ughy's Avatar
h0ughy (David)
Moderator

h0ughy is offline

Join Date: Apr 2005
Location: NEWCASTLE NSW Australia
Posts: 33,426
Quote:
Originally Posted by EzyStyles View Post
thanks houghy. Ibought one secondhand from AM as seen in the pics. i dont think that has the locking screw? i suspect its got a main setscrew which locks the focuser inplace anyway?
http://www.iceinspace.com.au/forum/a...se.php?a=35353 see this for the answer - what you think wont work it has to be the focus lock - locks the shaft
Reply With Quote
  #5
Old 30-09-2008, 11:00 PM
EzyStyles's Avatar
EzyStyles (Eric)
I HATE COMA!

EzyStyles is offline

Join Date: Jan 2006
Location: Melbourne, Victoria
Posts: 3,208
bummer.. think it will sustain a DSLR without slipping with no locking screw?
Reply With Quote
  #6
Old 30-09-2008, 11:08 PM
h0ughy's Avatar
h0ughy (David)
Moderator

h0ughy is offline

Join Date: Apr 2005
Location: NEWCASTLE NSW Australia
Posts: 33,426
Quote:
Originally Posted by EzyStyles View Post
bummer.. think it will sustain a DSLR without slipping with no locking screw?
absolutely not - it will slip and you of all people know that focus gets critical LOL. i forgot to order mine first up - i actually missed it in the order form. i sent it back to be fitted - cost me extra but it was worth it. You could email to see if they will retrofit for you? or sell this one and save for the next one - -with all the bells and whistles
Reply With Quote
  #7
Old 30-09-2008, 11:26 PM
EzyStyles's Avatar
EzyStyles (Eric)
I HATE COMA!

EzyStyles is offline

Join Date: Jan 2006
Location: Melbourne, Victoria
Posts: 3,208
been waiting for months for a focuser to come up on AM don't have one at all right now as i have sold my JMI. too late as i have paid the seller on AM . according to moonlites website:

The dual rate Tri-knob option is a 2-speed configuration with a regular knob on one side and a fine and coarse knob on the other. Both coarse knobs are 1.2" OD, and the fine knob is 1" in size. The fine knob uses an oversized 8 to 1 reduction unit featuring a preloaded, all ball bearing planetary reduction design that has no backlash or play. The inline unit can simple be rolled by the slightest touch of your finger to make very fine focus movements plus has an auto brake when focus is stopped. No scope wiggles here and perfect collimation plus an 5 lb weight capacity make this option ideal for typical visual or imaging use. The fine knob is on the right by default, but can be made a lefty if needed. If increased lifting capacity is needed, please consider one of our motor options below. The motor option give the CR focuser a 8 lb lifting capacity rating. $100 option.

ideal for typical visual or imaging use. Are they referring to a Meade DSI or a Toucam? or unless maybe i can drill a hole on the turning knob and put a screw in to hold it? *shurgs*
Reply With Quote
  #8
Old 03-10-2008, 06:07 PM
Geoff45's Avatar
Geoff45 (Geoff)
PI rules

Geoff45 is offline

Join Date: Jul 2006
Location: Sydney
Posts: 2,631
I've just ordered one of these 2.5" focusers for my refractor. They claim a 10 lb (4.2 kg) vertical lift with the dc motor and Rigel Systems control.
Not cheap, and more expensive than 2 months ago.
