AZEQ6 GT chip identification

[axle01 (Alan)]

I need to identify the part number of U8 and U9 chips on the circuit board.

I took the mount to my techy mate and he identified that U8 and U9 are blown out but because they have been burnt out he can’t read the part numbers.

The only way I can think to get this if someone would unscrew the panel and circuit board and photograph the 2 chips so I can get the part numbers.

I would be totally indebted to anyone that would do this for me.

Al

[miker]

Hi Alan, from some bad photos I have when my drive board was changed the best I can get is the following:
U8
MIC
2171WU
QY42P

U9
GH15E
733653

I hope this helps.

Michael.

[axle01 (Alan)]

Originally Posted by miker

Hi Alan, from some bad photos I have when my drive board was changed the best I can get is the following:
U8
MIC
2171WU
QY42P

U9
GH15E
733653

I hope this helps.

Michael.

Really appreciated Michael I will take this to my techy, thank you.

Al

[axle01 (Alan)]

Hey guys just an update on my mount, my techie has fixed the mount for a total cost of $118.50 compared to nearly $300 for a new mother board.

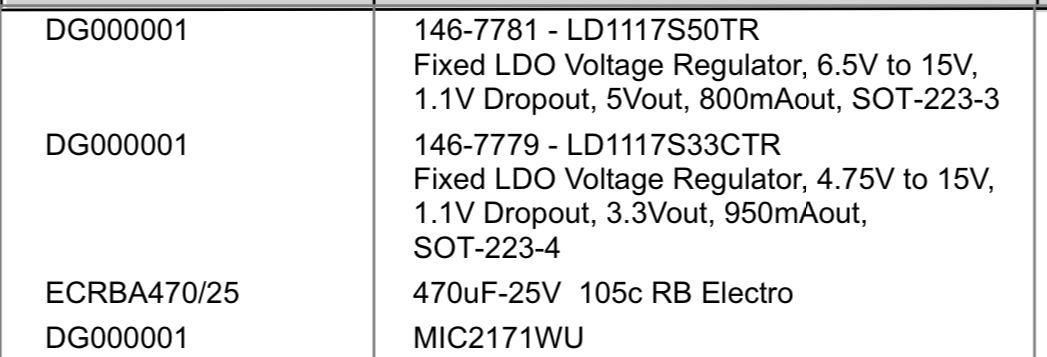

These are the chips and part numbers for future reference if anyone makes the same mistake I made.

https://hosting.photobucket.com/imag...DA9FD65A8.jpeg

Al
